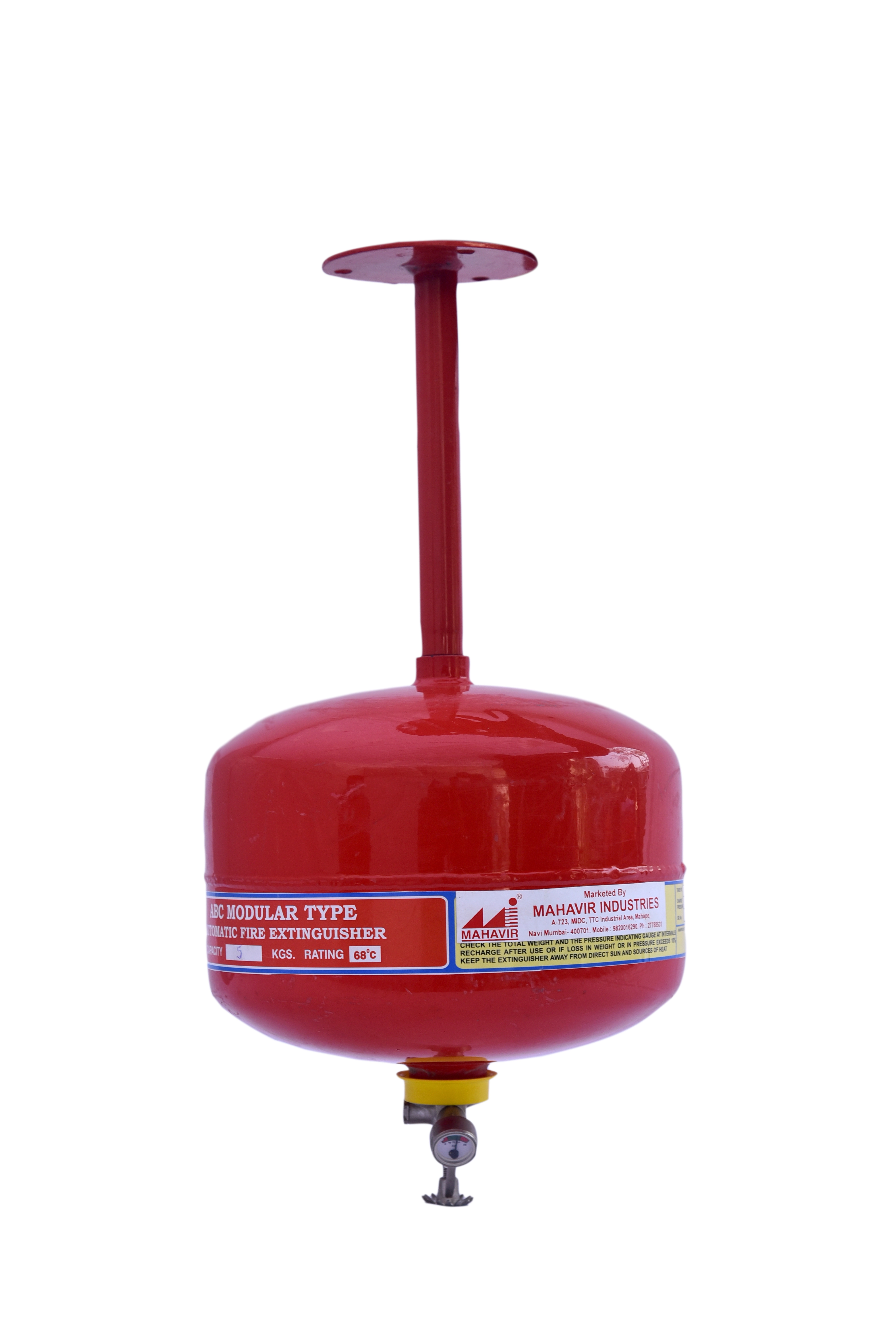

5 Kg ABC Modular Type Automatic Fire Extinguisher

The 5 kg ABC Modular Type Automatic Fire Extinguisher is a ceiling-mounted unit intended for automatic protection in selected unattended or enclosed areas. The supplied technical specification identifies model SPF-M05 and describes applications such as storage rooms, server rooms and engine compartments. Suitability depends on the room layout, hazard, installation height, nearby equipment and the manufacturer’s installation requirements.

The supplied data lists a 5 kg capacity, 68°C operating temperature, average discharge time of 6–8 seconds, recommended hanging height of 1.5–2 metres above the risk, stated area protection of 2–2.5 m² and volume protection of 6 m³. It also lists 99% average discharge and service/test pressures of 15/35 bar. The expelling agent is described as “Nitrogen / Clean Agent” in the supplied specification; confirm the actual agent and system details with the supplier before ordering.

The specification lists protection for Type A, Type B, Type C and live electrical equipment, but final selection must be confirmed against the manufacturer’s documentation and applicable site requirements. This unit does not replace a complete fire alarm, evacuation or engineered suppression strategy where those are required. Professional positioning and installation are important. Contact Munshi Fire Safety to discuss the application and request a quotation.
